Consumables >> Consumables >> 30% Triple Junction GaAs Solar Cell CICs

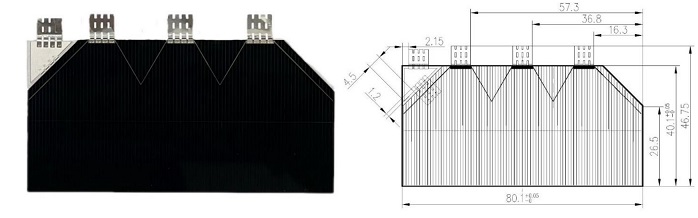

Design and Mechanical Data
Substrate Material ： P-Ge
Base Material ： GaInP/GaAs/Ge
Thickness ： 150μm±20μm
Welding Method ： Weld or Solder
AR-coating ： TiO x /Al 2 O 3
Coverglass ： KFG120
Coverglass thickness ： 120μm
CICs Size ： 40.1+0.050mm × 80.1+0.050mm
CICs thickness ： 300±25μm
Interconnector thickness ： 30μm
Average Weight ： ≤115mg/cm 2
Bypass Protect ： Si Diode
Extra option：1. Different thickness coverglasses can be customized.
2. ITO coverglass available.
